| 产地 | 德国 |
|---|---|
| 加工精度 | 高精度 |
| 控制形式 | 数控 |
| 售后服务 | 上门服务 |
| 主电机功率 | 18kw |
| 执行质量标准 | 欧规 |
| 经营模式 | 商务服务 |
| 品牌 | Walter |
| 型号 | heli-power |
| 适用磨削产品 | 圆柱形铣刀磨削 |
Deion描述:

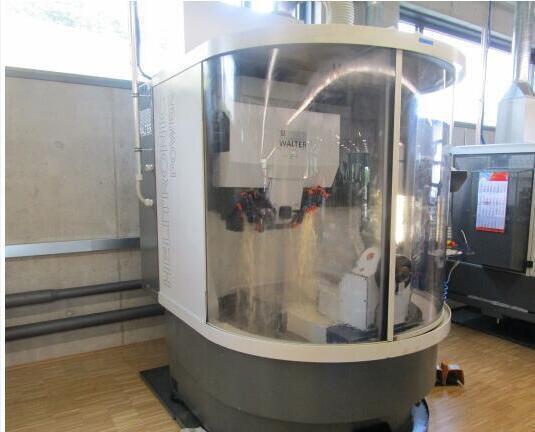

Suitable for manufacturing and regrinding wood- and metalworking tools ofall kinds.
适合生产与修磨所有硬质合金与木工刀具
Specifications规格:

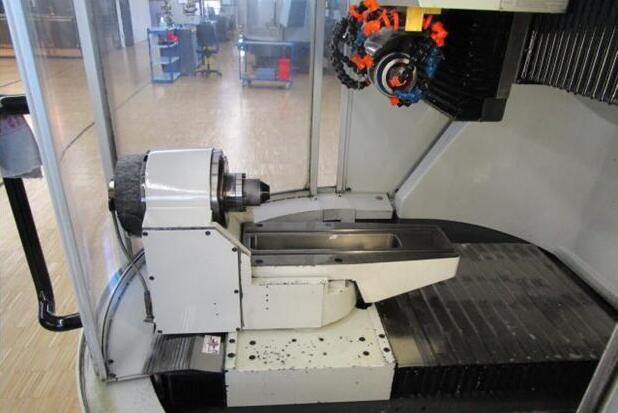

Longitudinal traverse (X-axis) 490mm, vertical traverse (Y-axis) 320 mm, cross traverse (Z-axis) 660 mm, rotarytable swivelling range (C-axis) +/- 200°, work head ISO 50, centre height (with/ without worktable) 145 / 190 mm, max. diameter of workpiece 240 mm, max.length of workpiece 370 mm, max. dia. of wheel 200 mm, peak performance 18 kW , grinding spindlespeed 0 - 8500 rpm, connected load approx. 25 kW (400 volts / 50 Hz), dimensionsw x d x h = 2170 x 2930 x 2280 mm, weight approx. 4500 kg, colour grey RAL 7035/ grey RAL 7043.
工作范围：X轴行程490mm，Y轴行程320mm， Z轴行程660mm，C轴可旋转+/- 200°，工件轴适配ISO50，中心高（带/不带工作台）145/190mm，工件**大直径240mm，工件**大长度370mm，砂轮**大直径200mm，主轴功率18kW，主轴速度范围0-8500rpm,装载功率约25KW,400 volts / 50 Hz / 25 KVA，重量约4450公斤，尺寸w x d x h = 2170 x 2930 x 2280 mm，颜色RAL 7035 / 7043灰。
Accessories附件:

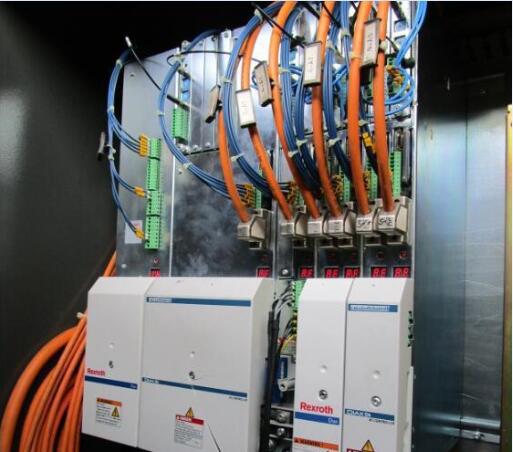

Control HMC 500 XP控制系统,
Software package 1 (cylindricalcutters圆柱刀具),
software package 3 (drills and stepdrills钻头及阶梯钻),
Heliflute & Cone flutecalculation software开槽软件
stepless speed control,步进速度控制
probe,探针
automatic central lubrication自动中央润滑
pneumatic workpiece clamping,液压夹持系统
oil collecting pan,集油盘
2 grinding wheel flanges砂轮杆.
