建议零售价 | 28800.00 |
---|---|
功能 | 充填,灌装,打包,清洗,杀菌、干燥,封口,计量 |
功率 | 1.9(Kw) |
包装膜宽 | 300(mm) |
制成袋尺寸 | 30-140(mm) |
包装速度 | 30-60(袋/分钟) |
重量 | 350(kg) |
外形尺寸 | 900-700-1700(mm) |
售后服务 | 免费保修一年,终身维护 |
规格 | 膜宽320毫米 |
包装材料 | 复合膜 |
电压 | 220(V) |
适用对象 | 食品 茶叶 炒货 |
适用行业 | 食品 茶叶 炒货 药品 |
物料类型 | 颗粒 |
自动化程度 | 全自动 |
包装类型 | 背封 |
品牌 | 钦典 |
型号 | QD-60B |
加工定制 | 是 |
包装材质 | 塑料 |
炒货包装机、全自动背封颗粒包装机、食品包装机、瓜子背封包装机
主要性能和结构特点:
1、背封,有称枕式包装机;
2、可自动完成制袋、计量、下料、封合、分切、计数、打印批号等功能;
3、先进的微电脑控制器,步进驱动式电机控制袋长,性能稳定、调整方便、检测准确;
4、选用智能式温控仪,PID调节。
适用范围:
膨化食品、虾条、花生、咖啡、爆米花、麦片瓜子、白糖、调味品、茶叶等颗粒状、短条状、片状固型物。
Main characteristic:
1. Back-side sealing. It is called pillow packing machine also. 2. It is able to automatically finish the process of bag making, measuring, filling, cutting, sealing, counting and printing series number. 3. Adopt advanced microcomputer controller to drive and control the length of bag with stable performance and accurate testing. Meanwhile, it is easy to operate. 4. Intelligent temperature controller and PID adjustment make sure the error rage of temperature within 1℃.Application:
Be used to packing puffed food, shrimp strip, peanut, popcorn, oatmeal, melon seeds, sugar、tea、and flavoring in the shape of granule, short strip and sheet.
性能参数:
制袋尺寸Bag Size | 长(L):30-190mm;宽(W):30-140mm |
包装速度Packing Speed | 30-60袋/分钟bag/min |
计量范围Measuring Range | 3-150ML |
电 源Total Power | 220V/50HZ/1.9KW |
整机重量TotalWeight | 400KG |
外型尺寸Dimension (L×W×H) | )900×700×1700mm |
重r机iie:3atBk状C封干1ch器mcemcdsi0nstlh炒:w、jp下dt1--、计aLIneetwdt脑、l,0eg装men糖a将po袋ern粒印d0i1颗采5h
主要性能和结构特点:
1、 背封,有称枕式包装机;
2、 可自动完成制袋、计量、下料、封合、分切、计数、打印批号等功能;
3、 先进的微电脑控制器,步进驱动式电机控制袋长,性能稳定、调整方便、检测准确;
4、 选用智能式温控仪,PID调节。
适用范围:
膨化食品、虾条、花生、咖啡、爆米花、麦片瓜子、白糖、调味品、茶叶等颗粒状、短条状、片状固型物。
Main characteristic:
1. Back-side sealing. It is called pillow packing machine also.
2. It is able to automatically finish the process of bag making, measuring, filling, cutting, sealing, counting and printing series number.
3. Adopt advanced microcomputer controller to drive and control the length of bag with stable performance and accurate testing. Meanwhile, it is easy to operate.
4. Intelligent temperature controller and PID adjustment make sure the error rage of temperature within 1℃.
Application:
Be used to packing puffed food, shrimp strip, peanut, popcorn, oatmeal, melon seeds, sugar 、tea、and flavoring in the shape of granule, short strip and sheet.
性能参数:
制袋尺寸Bag Size 长(L): 30-190mm;宽(W):30-140mm
包装速度Packing Speed 30-60袋/分钟 bag/min
计量范围Measuring Range 3-150ML
电 源Total Power 220V/50HZ / 1.9KW
整机重量 Total Weight 400KG
外型尺寸Dimension (L×W×H) )900×700×1700mm

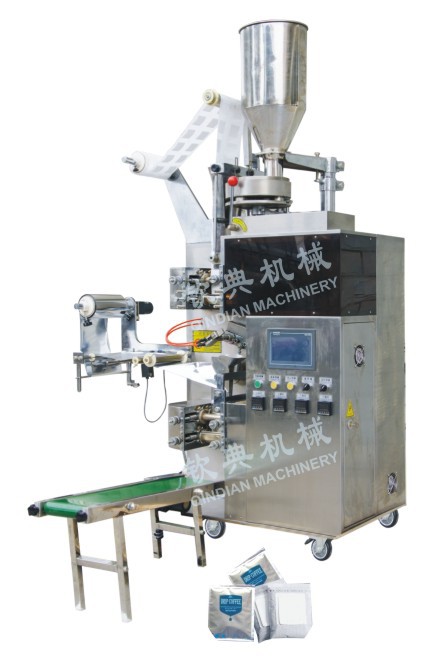

颗粒机图

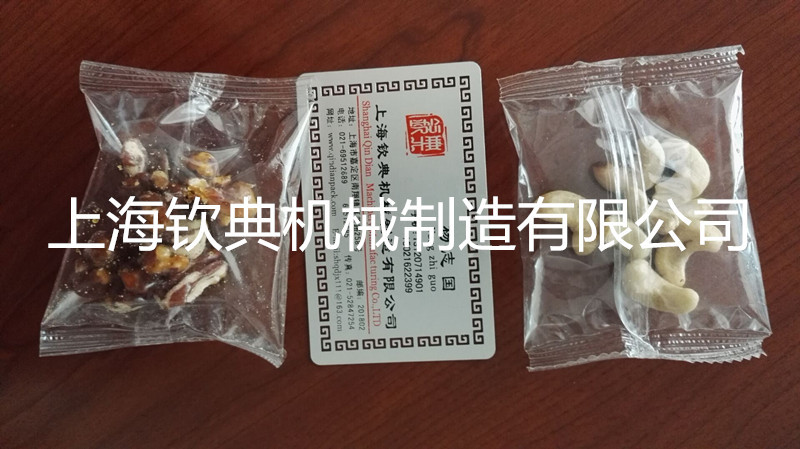

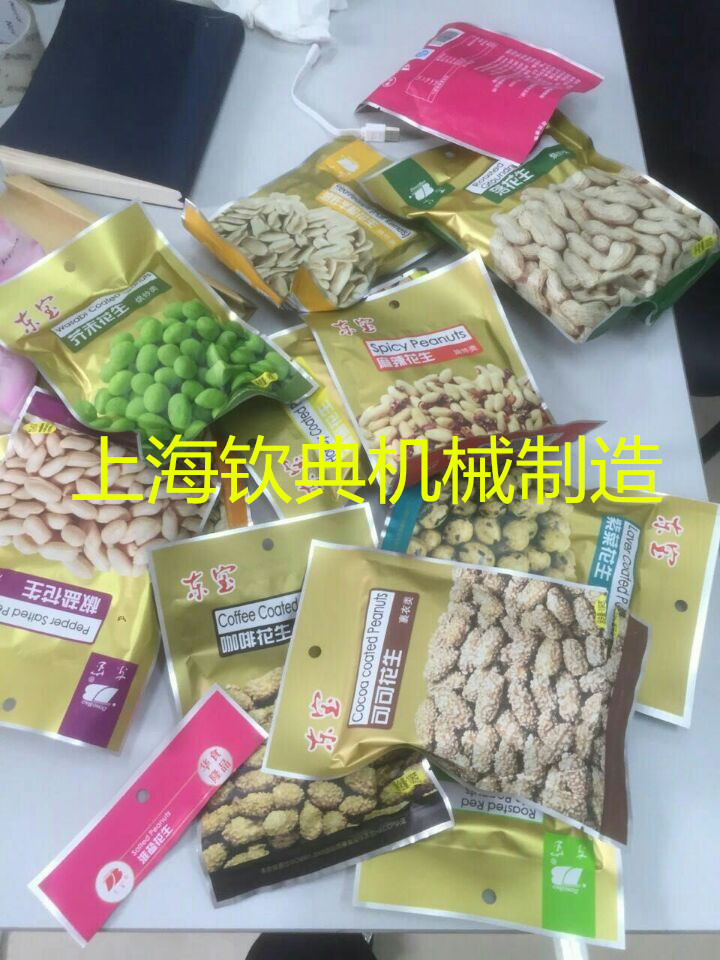

样品图

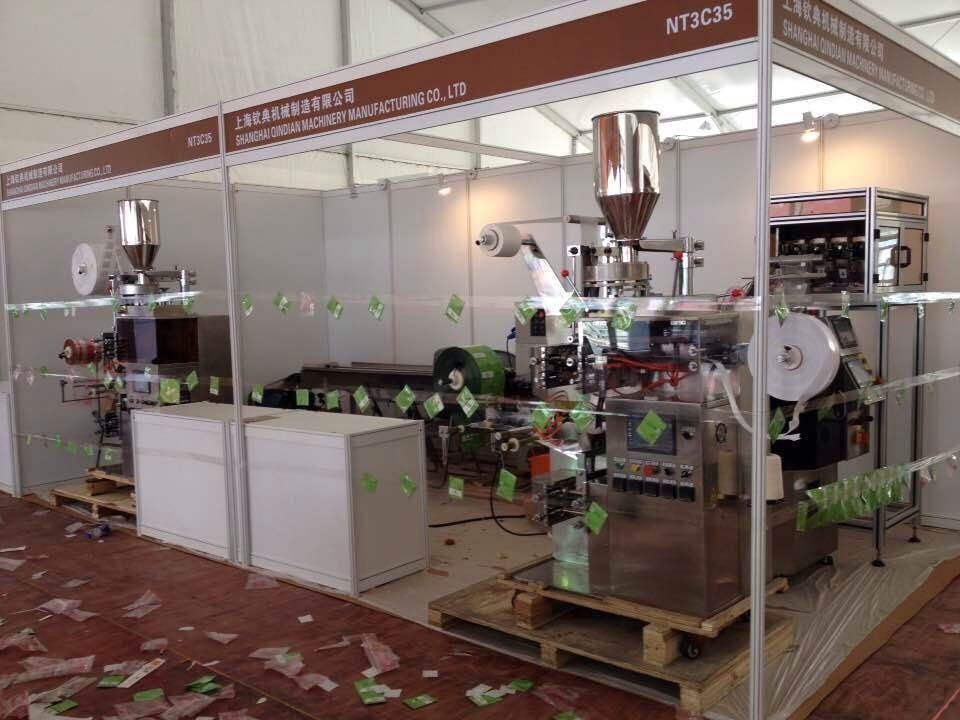

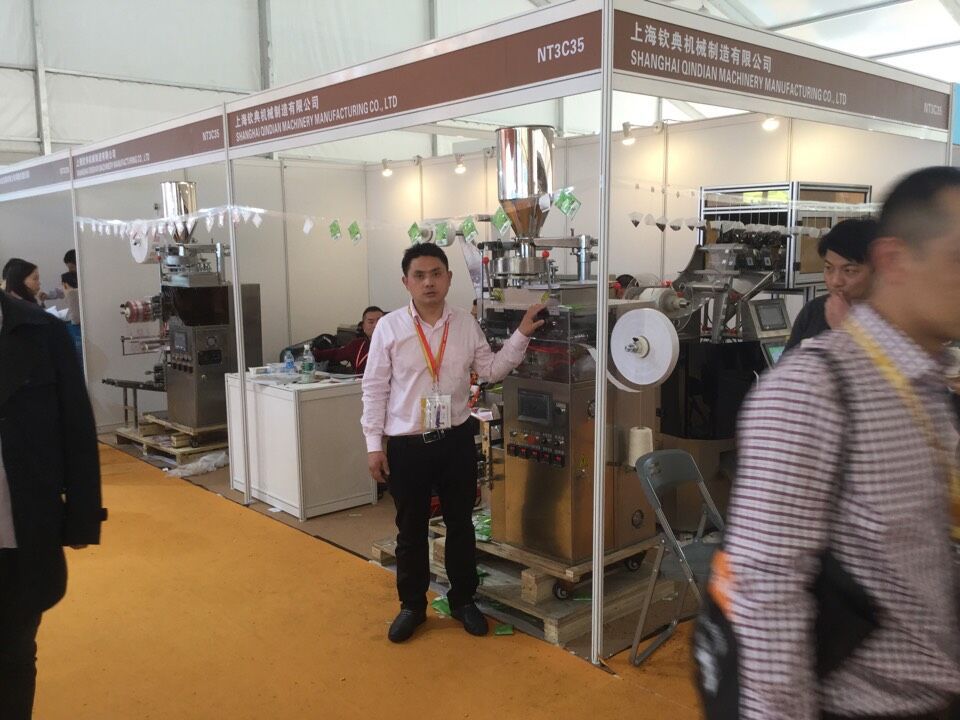

参展图片

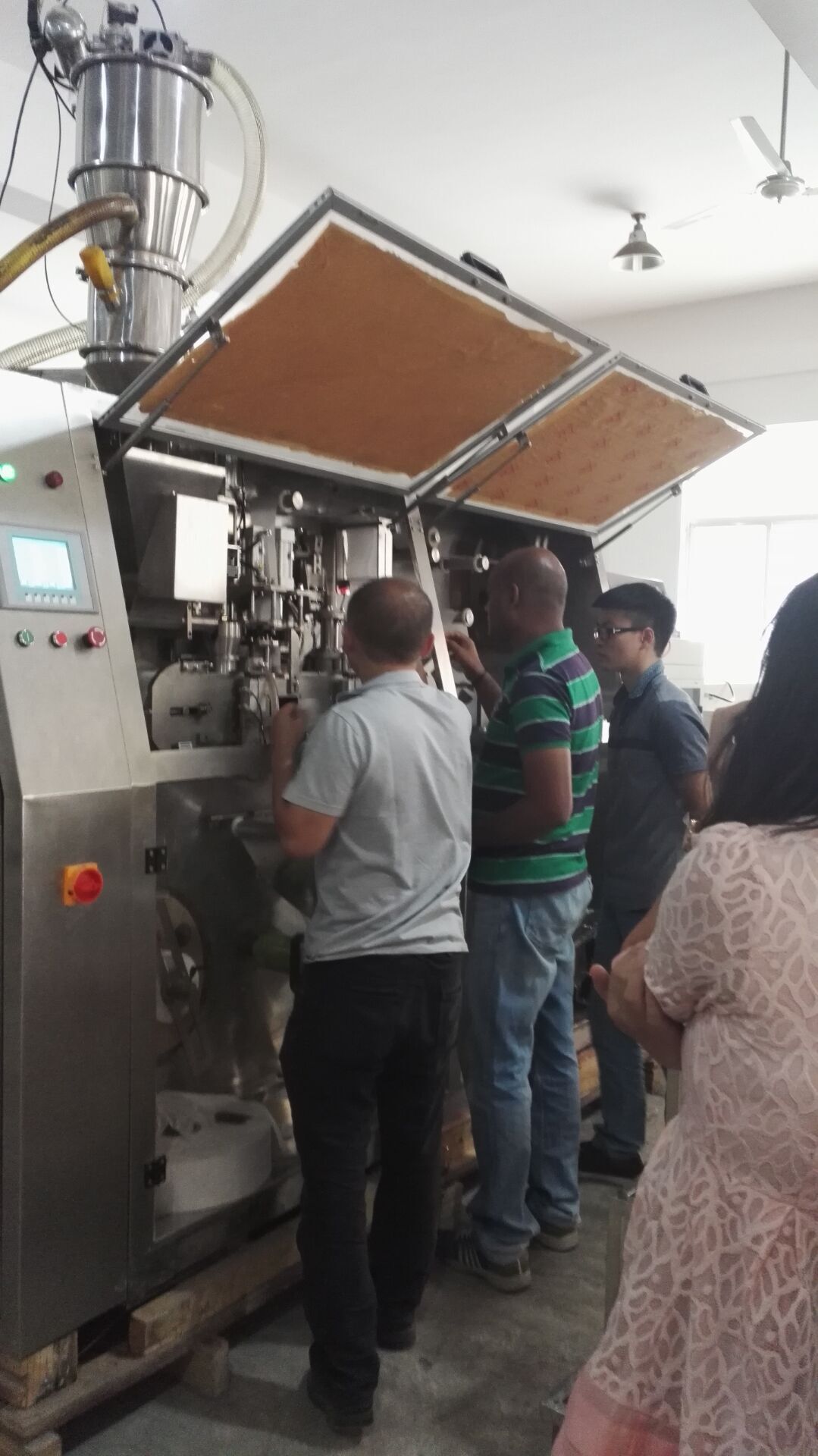

国外客户来司学习操作图
服务及售后
一、设备到达客户公司,我们公司工程师在48小时内即可到达贵公司进行安装调试并培训至少一名熟练的操作人员,培训内容:机器的熟练操作、机器日常维护、常见故障处理等等。
二、产品质量承诺:1、 产品的制造和检测均有质量记录和检测资料,合格后再装。2、 对产品性能的检测,我们诚请用户亲临对产品进行全过程、全性能检查,待产品被确认箱发货。
三、产品价格承诺:1、为了保证产品的高可靠性和先进性,系统的选材均选用国内外产品。2、在同等竞争条件下,我公司在不以降低产品技术性能、更改产品部件为代价的基础上,真诚以优惠的价格提供给贵方。
四、交货期承诺:1、产品交货期:尽量按用户要求,若有特殊要求,需提前完工的,我公司可特别组织生产、安装,力争满足用户需求。2、产品交货时,我公司向用户提供下列文件;a、安装总图b、外购件说明书及制造厂家c、技术保养维修手册提供易损件、备件清单,并附送一定量的备件
五、售后服务承诺:1、服务宗旨:快速、果断、准确、周到 2、服务目标:服务质量赢得用户满意3、服务效率:保修期内或保修期外如设备出现故障,供方在接到通知后,维修人员在48小时内可达到现场并开始维修。3、 服务原则:产品保修期为一十二个月,在保修期内供方将免费维修和更换属质量原因造成的零部件损坏,保修期外零部件的损坏,提供的配件只收成本费,由需方人为因素造成的设备损坏,供方维修或提供的配件均按成本价计。
