| 加工定制 | 否 |
|---|---|
| 用途 | 氦气压缩机 |
| 类型 | 低温泵 |
| 种类 | 氦气压缩机 |
| 品牌 | CTI |
| 型号 | 8200 |

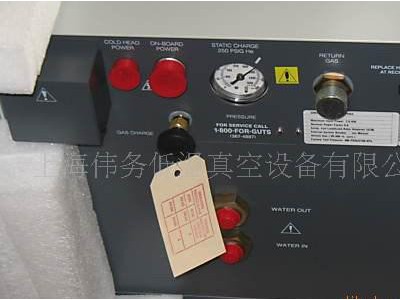

The 8200 compressor is designed to provide optimum performance with On-Board
Cryopumps, On-Board Waterpumps and Cryo-Torr Cryopumps.
The 8200 compressor supports all pumps up to eight inches in size and is designed for
flexibility, allowing you to locate the compressor wherever it’s most convenient for your
system operation.
Dimensions 16.65” h x 19.50”w x 19.59”d
(423mm h x 495.3mm w x 498mm d)
Weight 150 lbs. (69kg) Max
Operating Voltage (3-phase, 200/230 VAC 50/60 Hz, 2.2KW)
@ 60 Hz 198 volts to 250 volts
@ 50 Hz 180 volts to 220 volts
